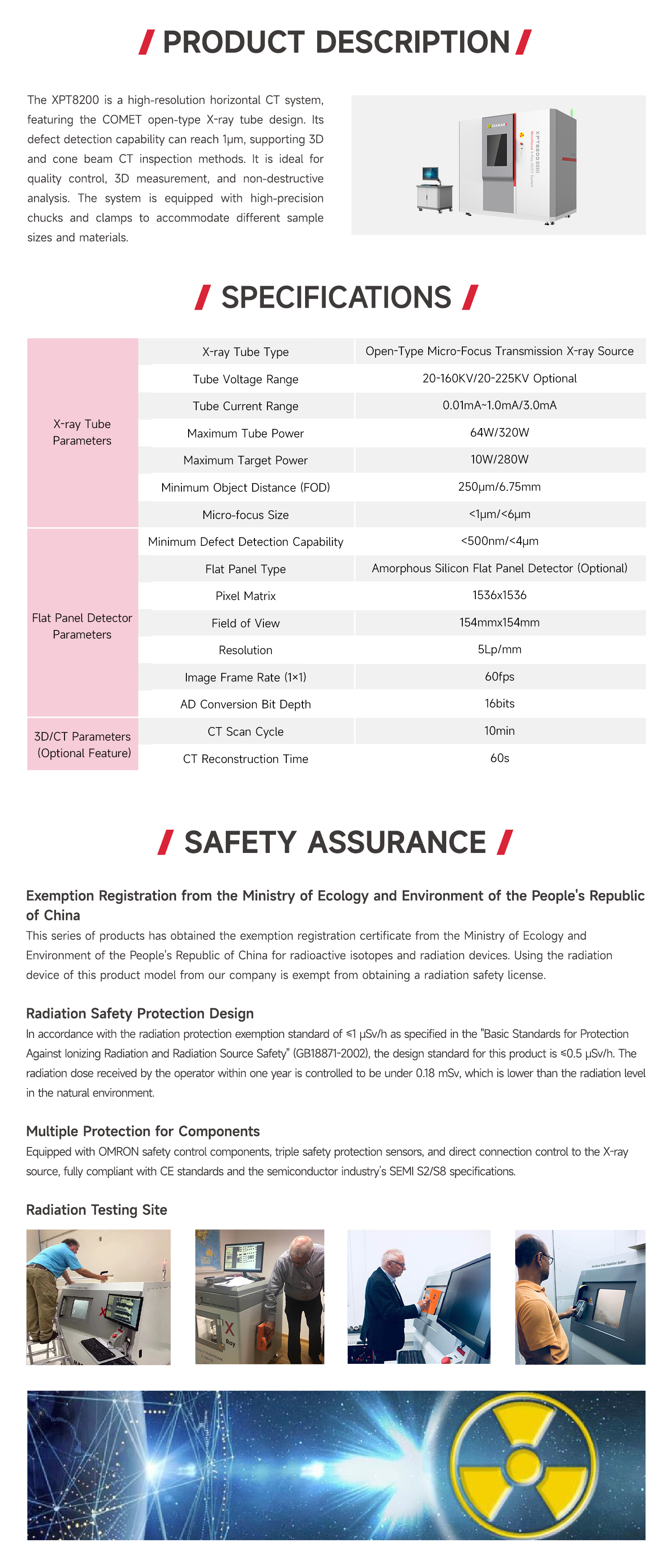

XPT8200 is a high-resolution X-ray 3D perspective inspection system designed with COMET open tubes. It can achieve various CT scanning methods such as standard cone beam CT scanning, standard cone beam extended field CT scanning, spiral CT scanning, etc. It is suitable for industrial manufacturing, quality control and process optimization, electronic device, chip inspection and other scenarios, and can meet the inspection of samples of different sizes and materials.
| 型号 | ||
|---|---|---|
| X-Ray Tube | X-Ray Tube Type | Open Microfocus Transmitted Ray Source (Optional) |
| Tube Voltage Range | 20-225KV | |
| Tube Current Range | 0.01mA-3.0mA | |
| Maximum Tube Power | 32-280W | |
| Minimum Object Distance (FOD) | 6.75mm | |
| Micro Focus Size | 4μm | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector (Optional) |
| Pixel Matrix | 3072×3072 | |
| Field of View | 430×430 | |
| Image Frame Rate (1x1) | 16fps | |
| AD Conversion Digits | 16bits |
