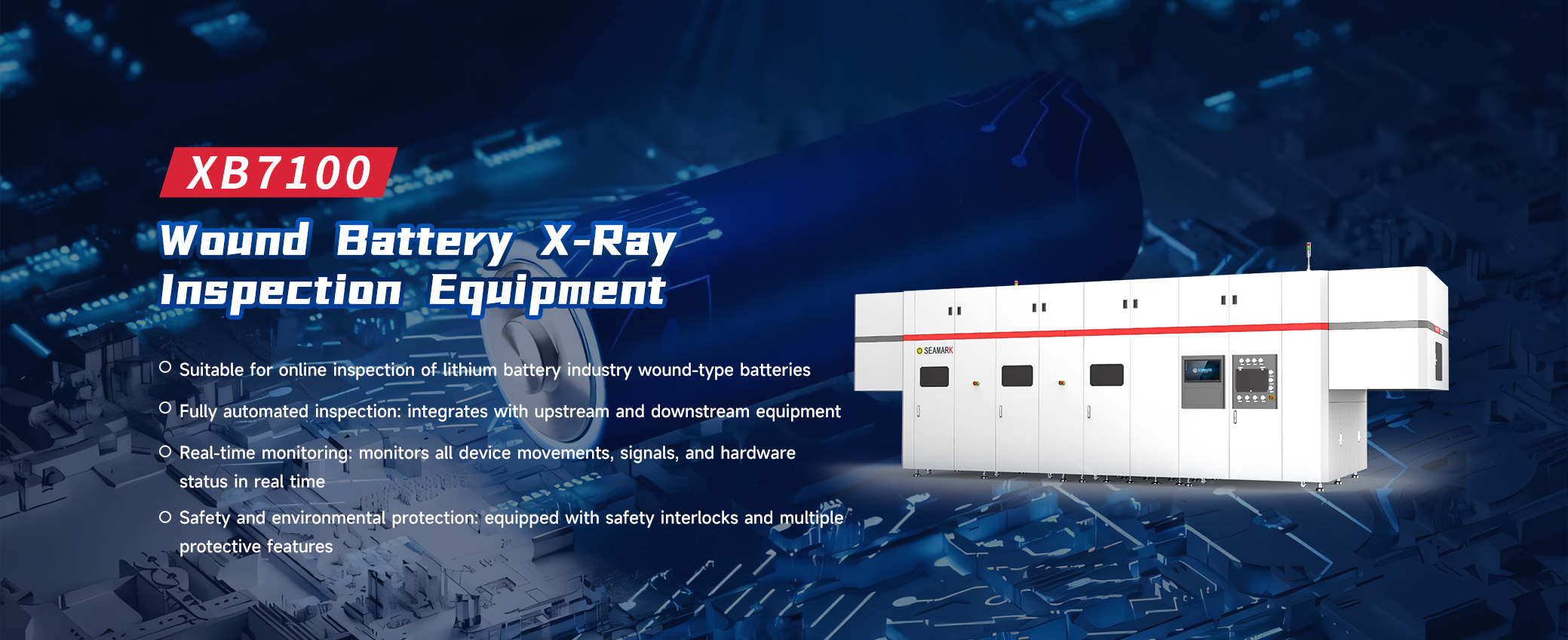

XB7100 winding battery X-ray inspection equipment realizes fully automatic inline inspection of multi-layer winding power batteries, connects with upstream and downstream logistics lines, realizes automatic cell removal, puts into the equipment for inspection, and automatically sorts NG products automatically takes out OK products, outputs the logistics line, and enters the downstream equipment.
